Send WSJT-X data to multiple applications
WSJT-X can send data to only one downstream application. WSJT-X Relay bridges that gap by relaying data between WSJT-X and multiple downstream applications. It supports bi-directional traffic flows, is easy to set up, and works with WSJT-X-aware tools on your LAN or across WAN links. Built and maintained by W1BBT.
End-User Features
- One-to-many UDP forwarding from one WSJT-X listen port to multiple downstream apps
- Bi-directional relay behavior so downstream reply traffic is sent back to WSJT-X
- Simple start/stop control with clear running/stopped status
- Live status indicators for frequency, mode, TX state, listen port, and targets
- Real-time activity log for relay traffic and events
- Persistent settings and QSO data between sessions
- Manual QSO entry for non-digital contacts (for example SSB/CW)
- Built-in QSO log view with running counts and recent activity

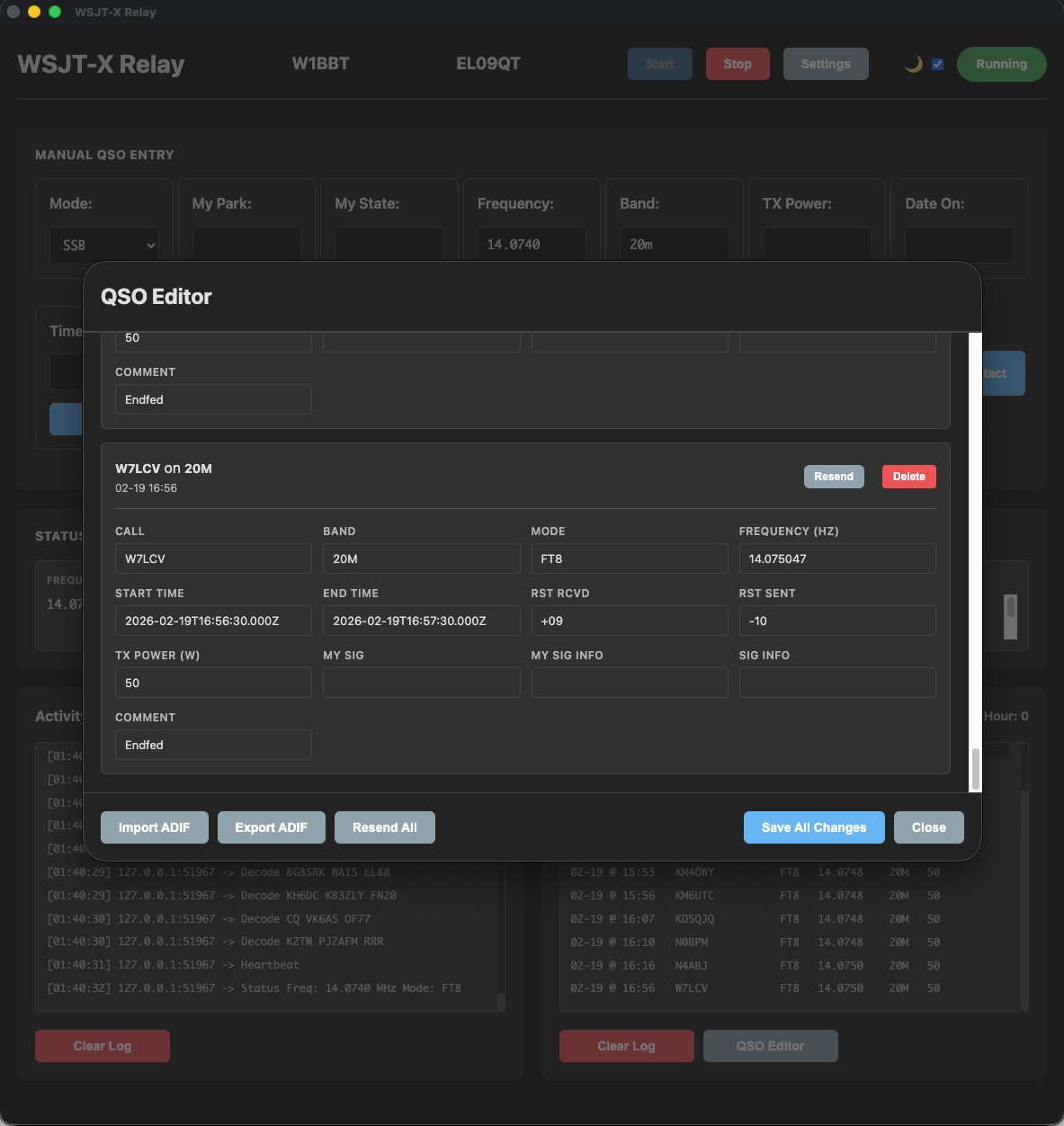

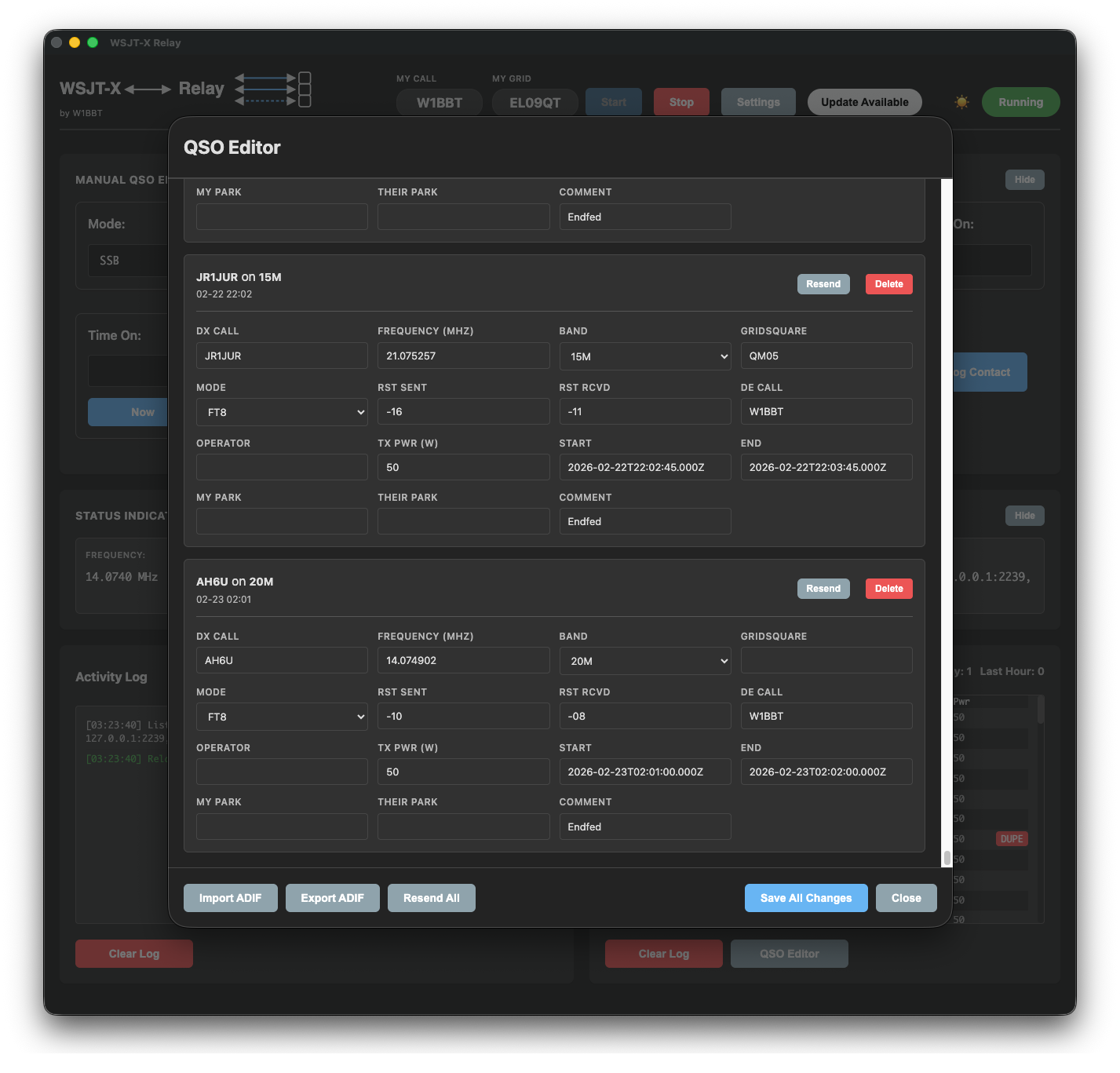

- QSO Editor window for reviewing and editing saved contacts
- ADIF import/export support
- Resend one or all saved QSOs to forward targets
- Light and dark themes
Downloads
Latest stable release: v1.0.5 · 2026-03-12Note: Some operating systems may show a security warning for first-time installs. See Quick Start below for platform-specific steps.
UbuntuLinux
Linuxwsjtx-relay-1.0.5-linux-x86_64.AppImage
v1.0.5 .AppImage 113.1 MB
Updated: 2026-03-12
Download
macOS
WindowsQuick Start
Install
Download your platform package, install it, and launch WSJT-X Relay.
Configure
Ensure WSJT-X UDP output is enabled and sending to the address and port WSJTX-Relay is listening on.
Relay
Configure downstream applications to listen on the forward endpoints added in WSJTX-Relay.
- Windows: Click More info, then click Run anyway.
- macOS: Right-click the app and choose Open, then click Open again. If blocked, go to System Settings → Privacy & Security and allow it.
- Linux: Prompts vary by distro. Mark the file executable if needed (
chmod +x) and launch from your app menu or terminal.
Club/Group Server Monitoring
With WSJT-X Relay, aggregating your club or group logs in one place is as simple as adding the server as a forward destination. Below is the personal group server my beta testers and I use:

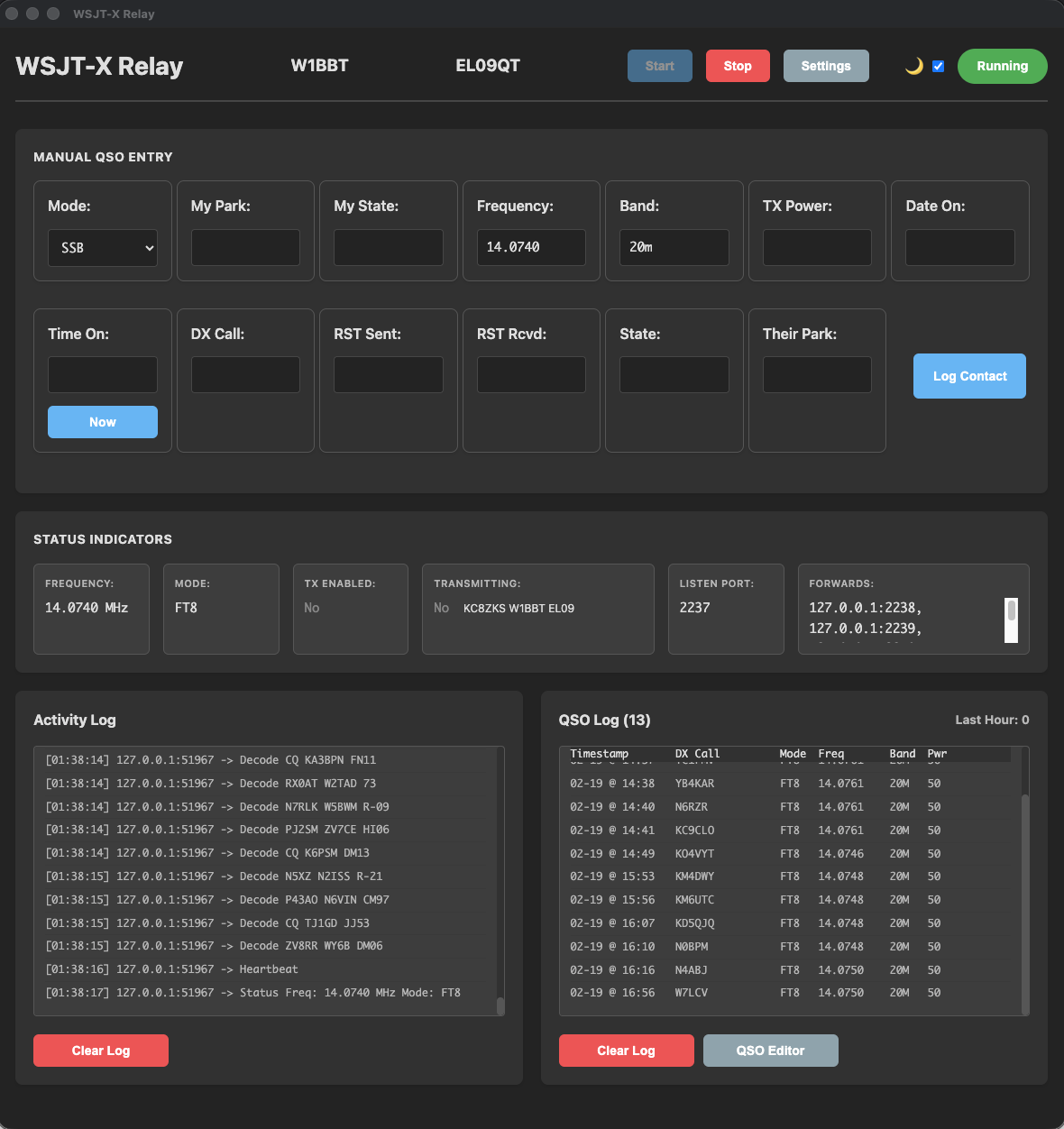

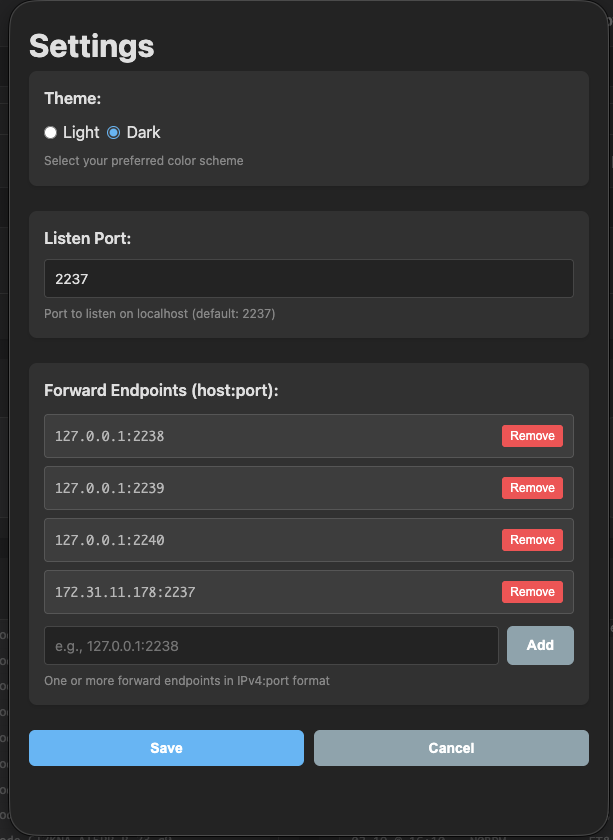

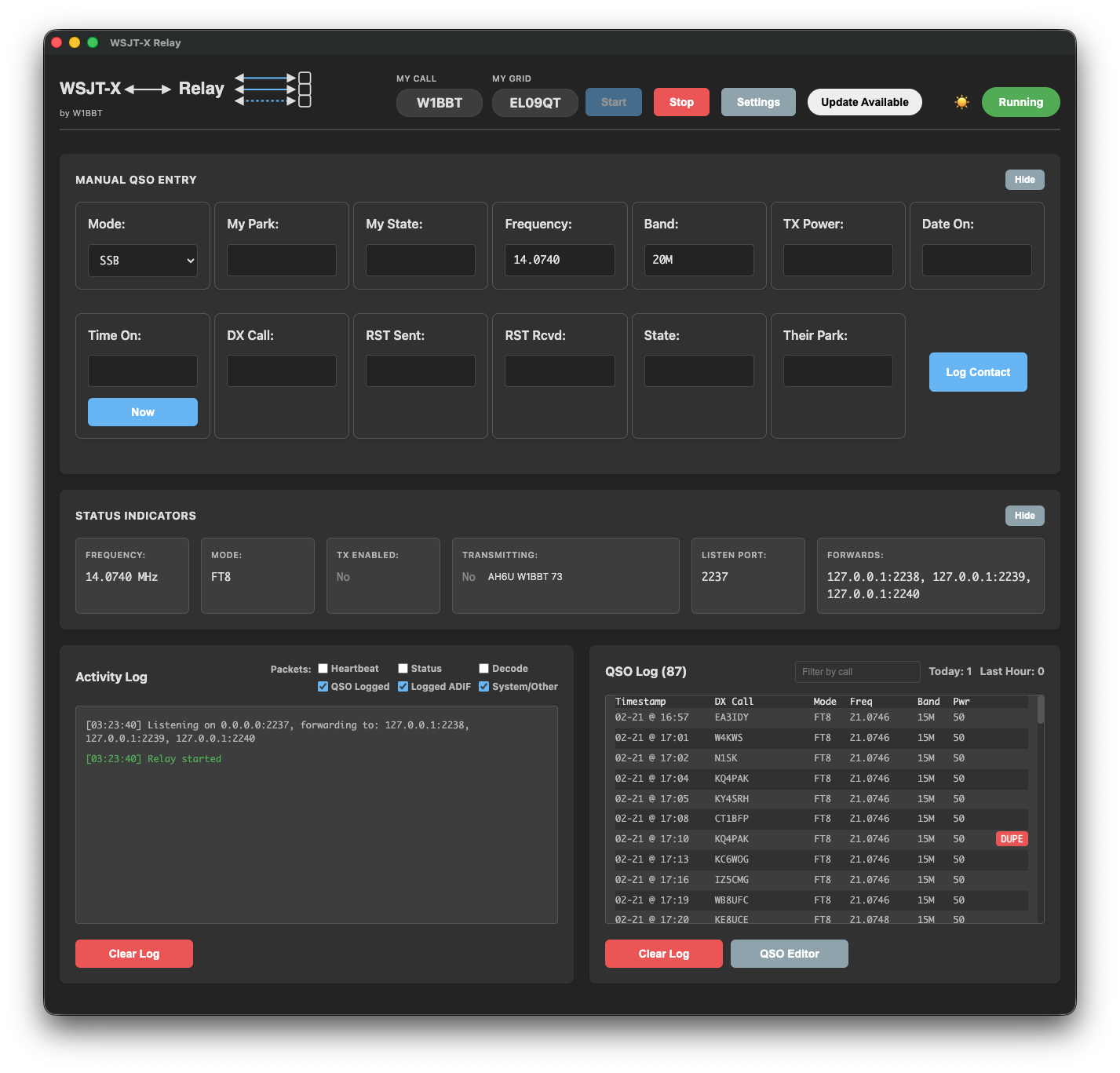

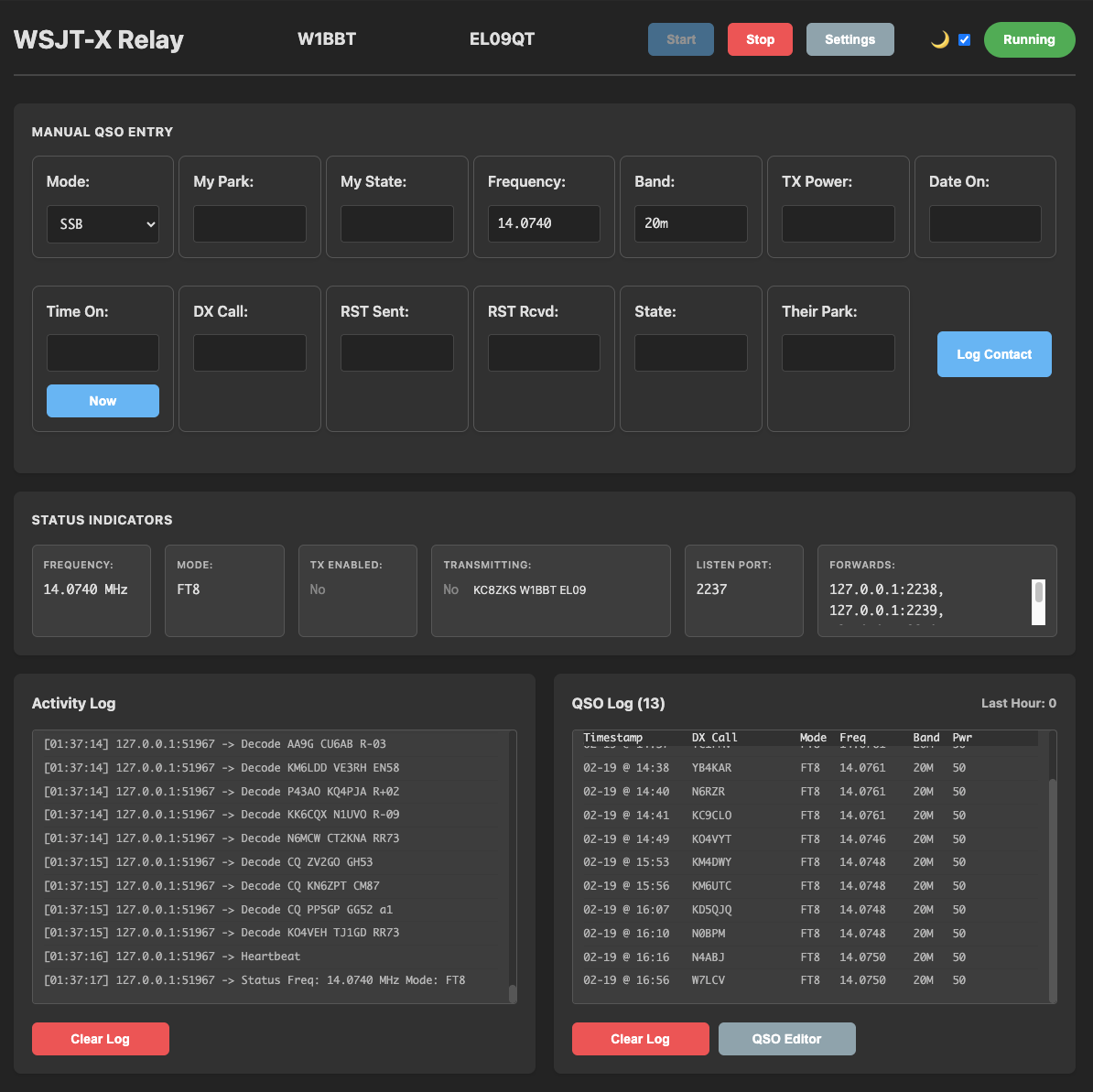

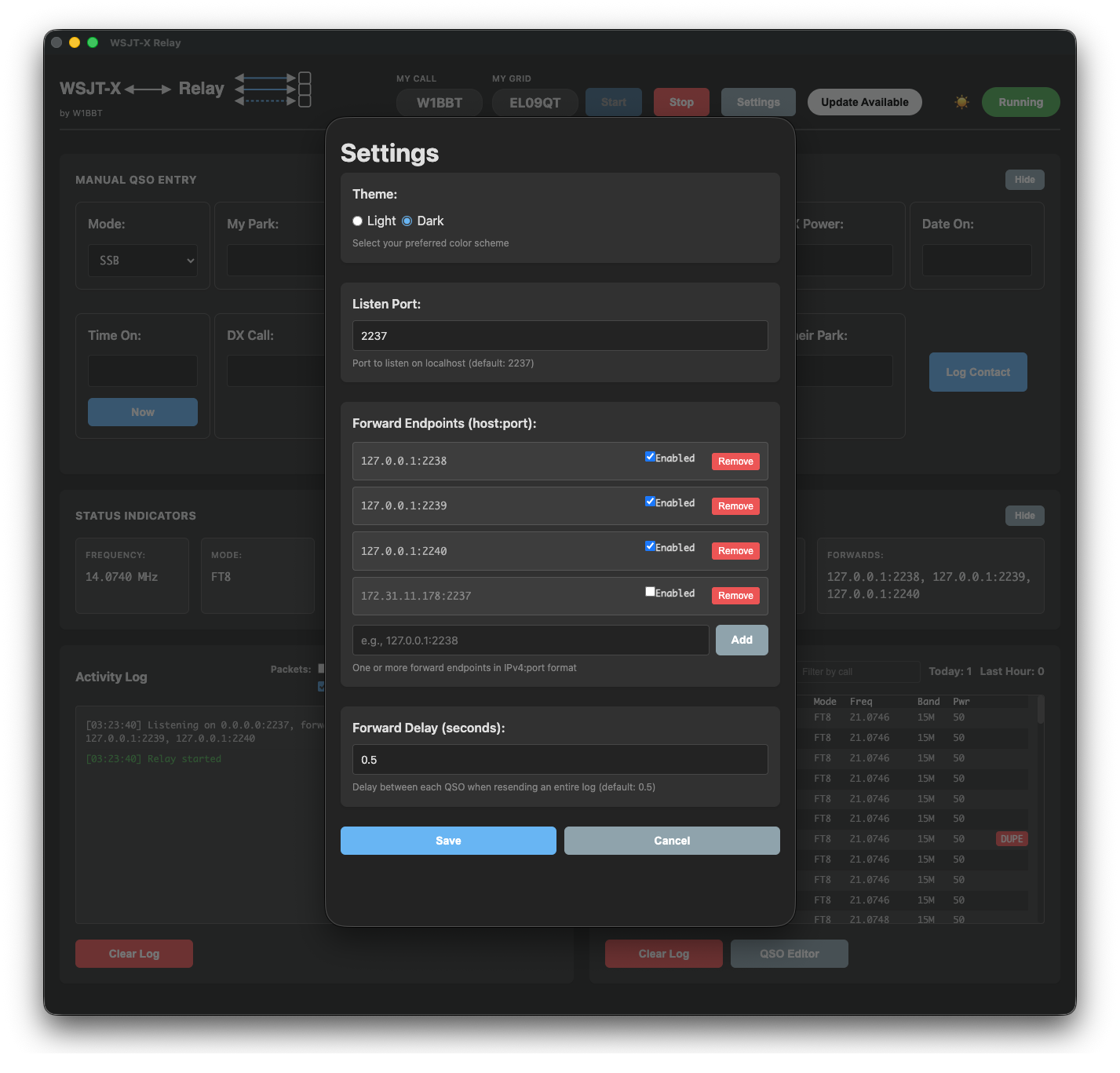

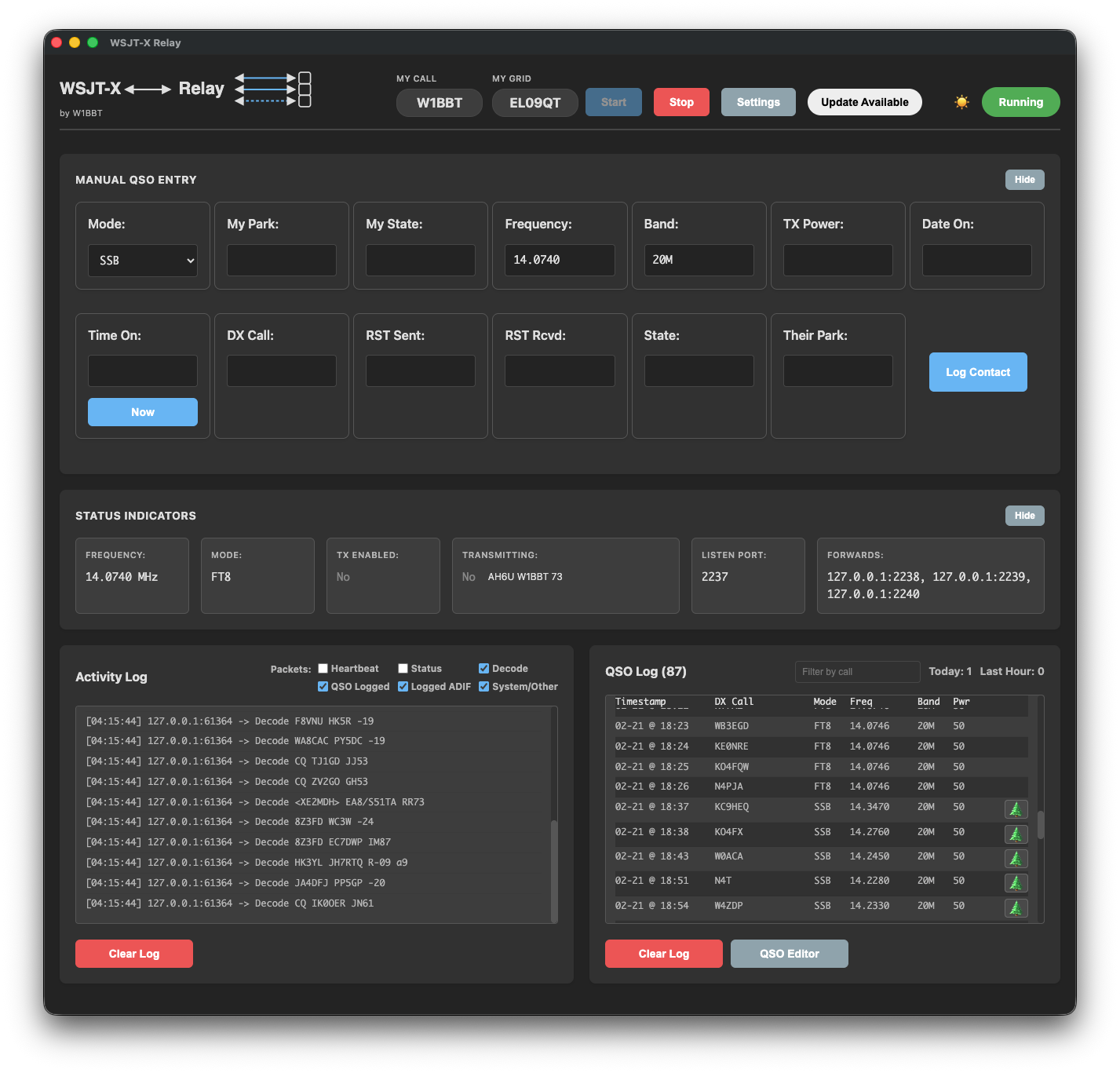

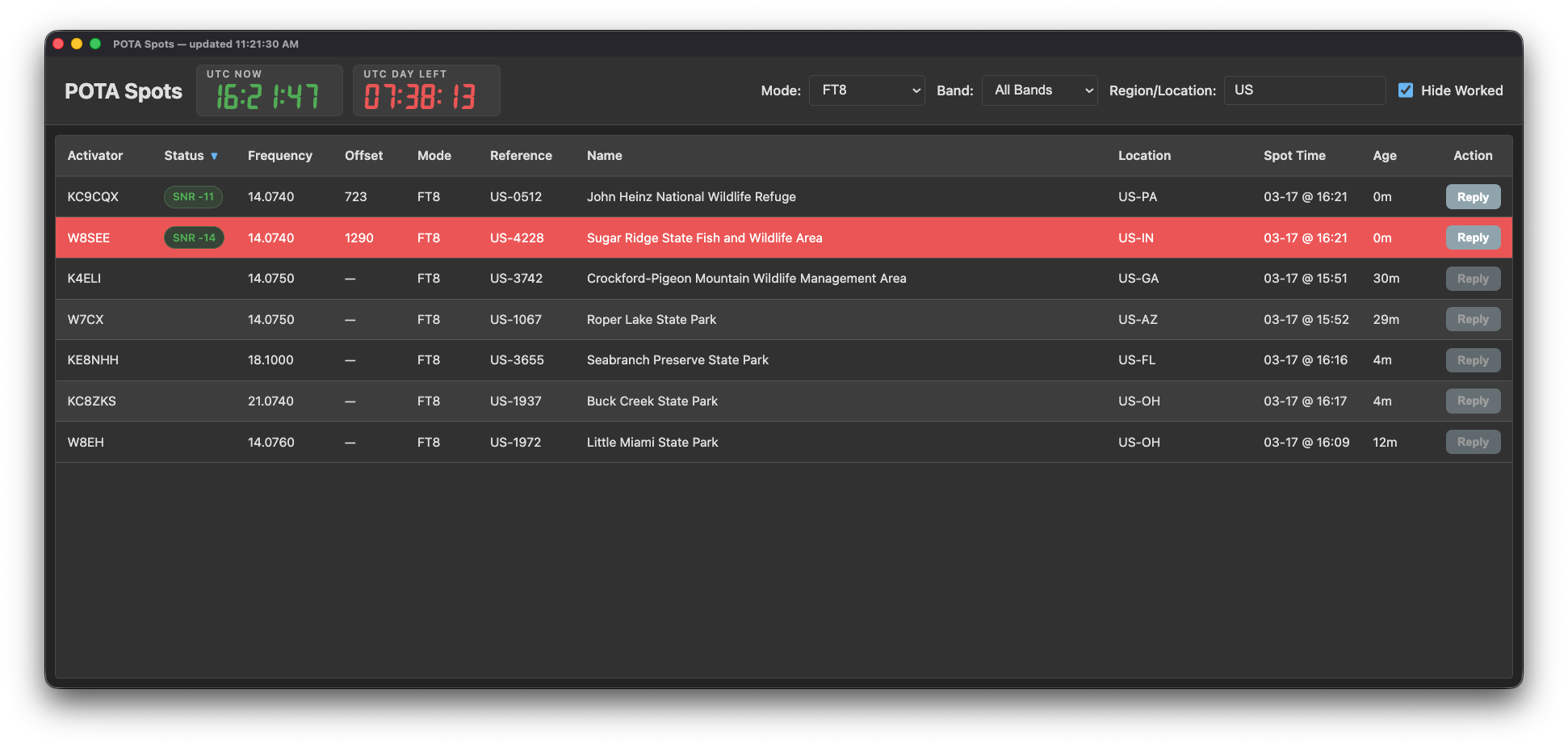

Screenshots
Click any screenshot to view the full-size imageNeed setup details or troubleshooting?
See full install notes, configuration guidance, and development details in the official README. To report issues or suggest new features, use the GitHub Issues page.
